Heavy Duty

Pneumatic Impulse Sealer

Semi-automatic pneumatic pouch sealer for high-volume industrial packaging.

Very fast sealing operation

Consistent pneumatic pressure

Foot switch actuated cycle

Available in wide sealing lengths

Suitable for production line use

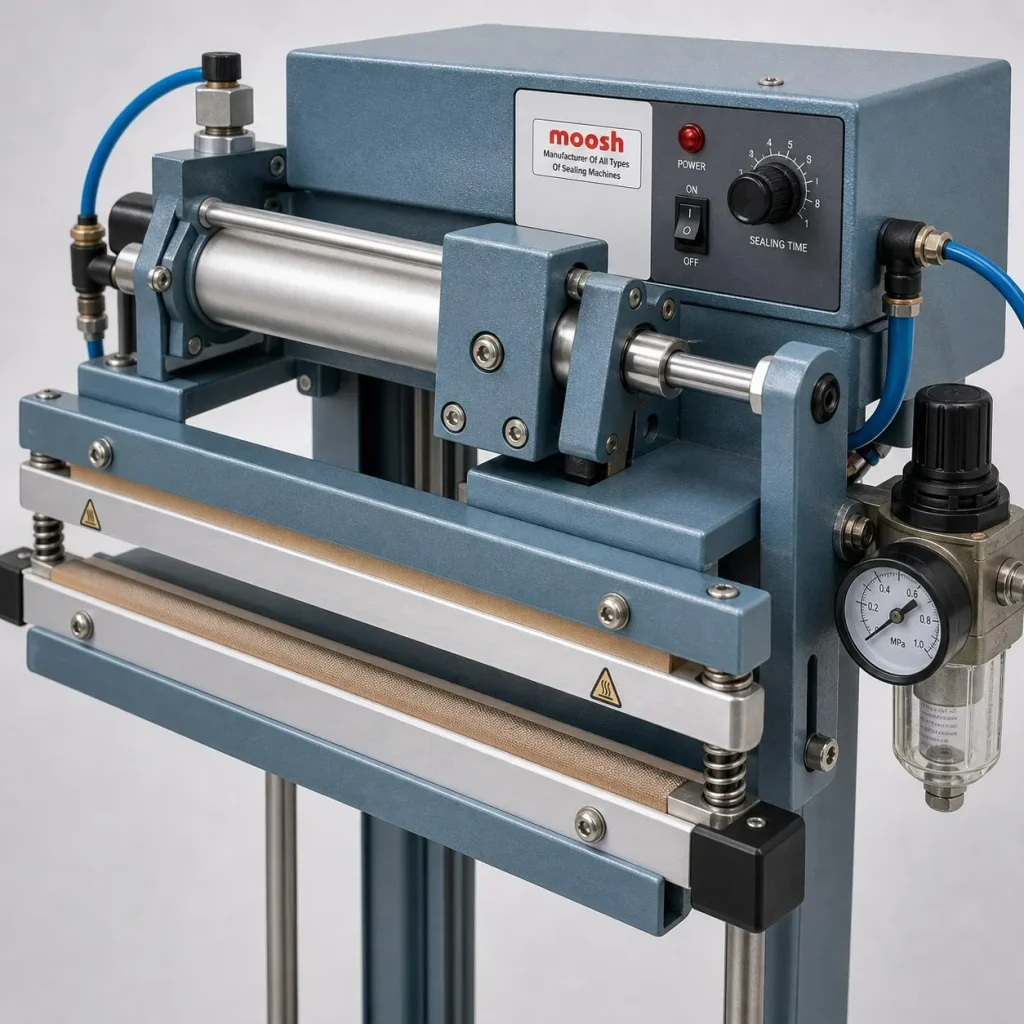

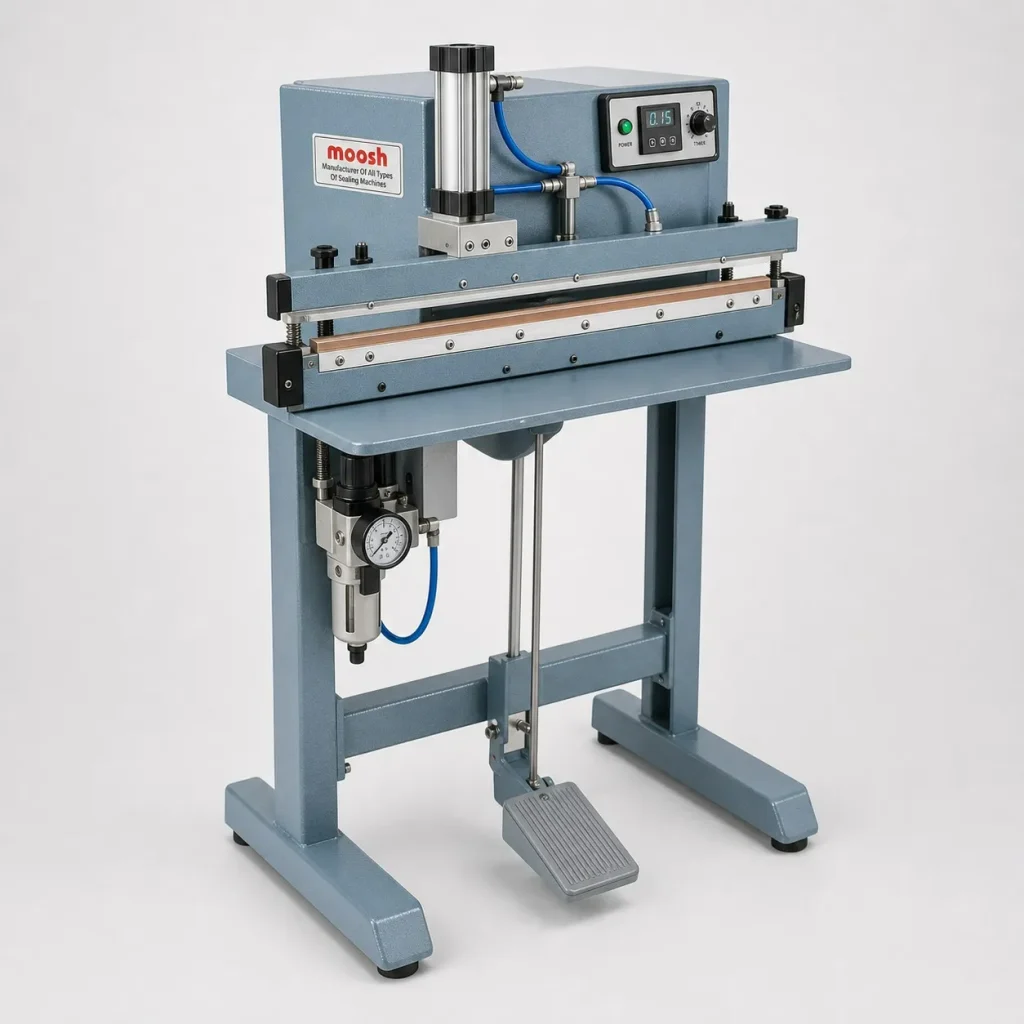

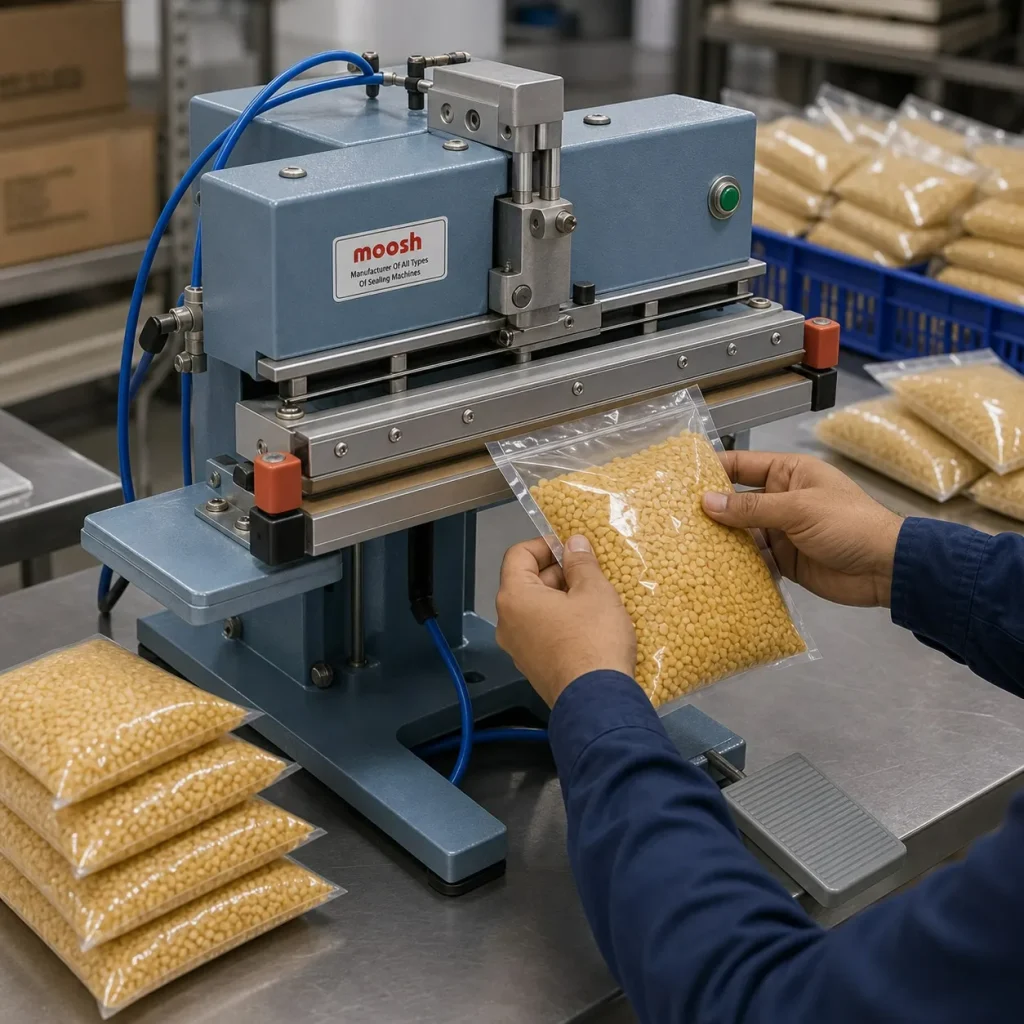

This pneumatic impulse sealing machine is designed for fast, repeatable and consistent pouch sealing. It can be actuated by foot switch for intermittent sealing cycles.

The machine is suitable for packaging teams that want better sealing uniformity than manual models while keeping operations simple.

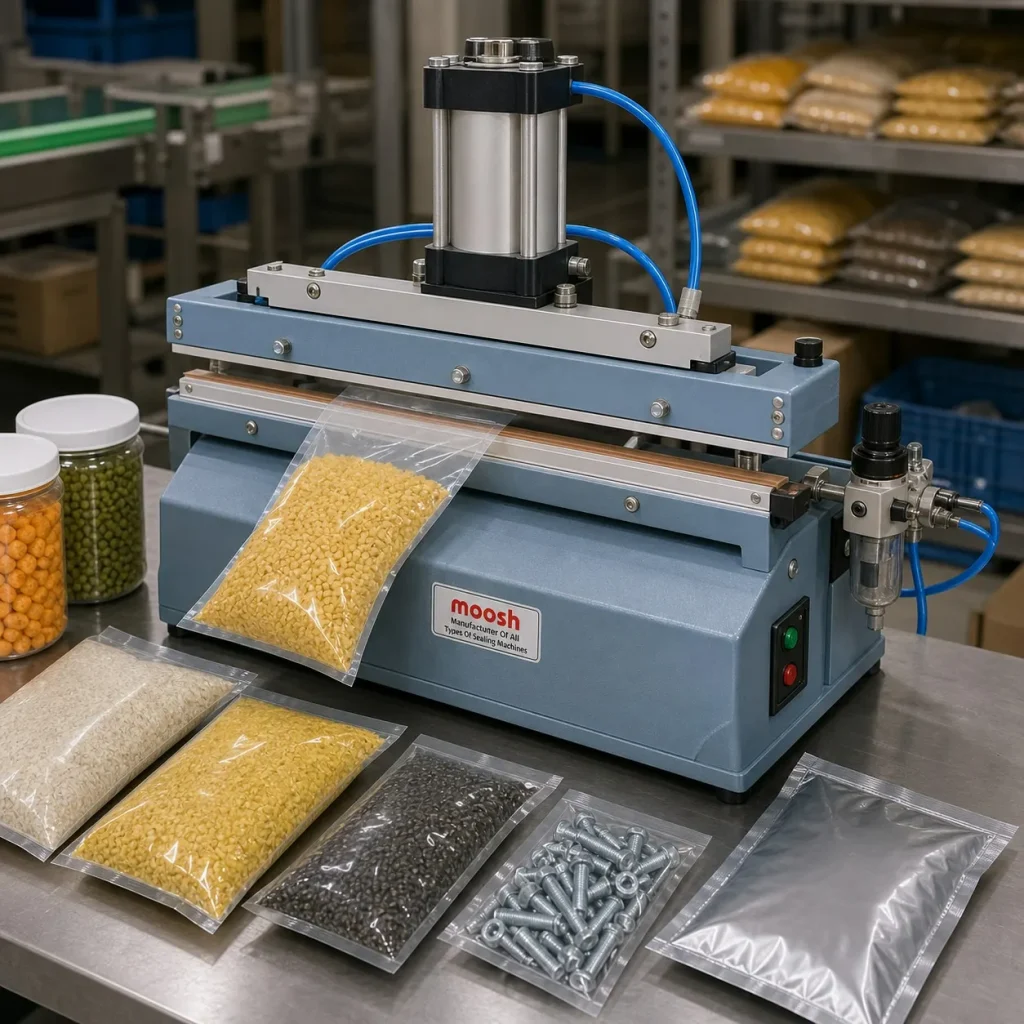

Applications

Industrial pouch sealing

Bulk plastic packet sealing

Export packaging

FMCG packaging

Factory production counters

Technical Specifications

Model / SeriesMO-IS-PN
Machine TypePneumatic Impulse Sealer
Sealing Length12 inch to 100 inch options
Sealing Width5mm / 8mm / 10mm
Voltage230V AC
OperationSemi-automatic pneumatic operation
Approximate Speed20-40 packages per minute
ActuationFoot switch cycle

Available Variants

12 inch model

Compact pneumatic sealer

24 inch model

Medium industrial model

48 inch and above

Wide sealing requirement model

FAQs

Which materials can this impulse sealer seal?

It is suitable for PP, LD, HM, HD and similar heat-sealable plastic materials.

Does an impulse sealer need warm-up time?

No. Impulse sealing machines heat only during the sealing cycle, so warm-up time is not required.

Which sealing width should I choose?

For stronger air-tight or liquid-tight sealing, choose at least 5mm sealing width wherever possible.
